The UR-100N rugged tablet is built to excel in the toughest environments, featuring a 10.1″ sunlight-readable display and powered by the Intel Alder Lake i5-1235U processor. Designed for reliability, it offers IP66 water and dust protection, MIL-STD-810H 4ft drop resistance, and a hot-swappable 11.1V battery, ensuring uninterrupted operation in industrial fieldwork, military settings, and emergency response situations. As a leading ODM/OEM provider, we offer tailored solutions with optional 4G LTE connectivity, expansion slot modules, and custom accessories to perfectly align with your industry’s unique demands.
Features

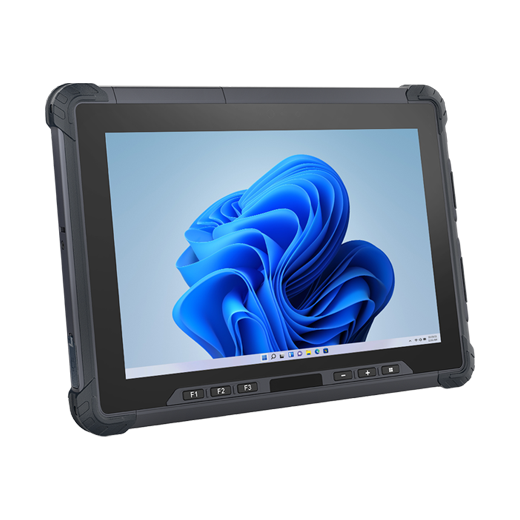

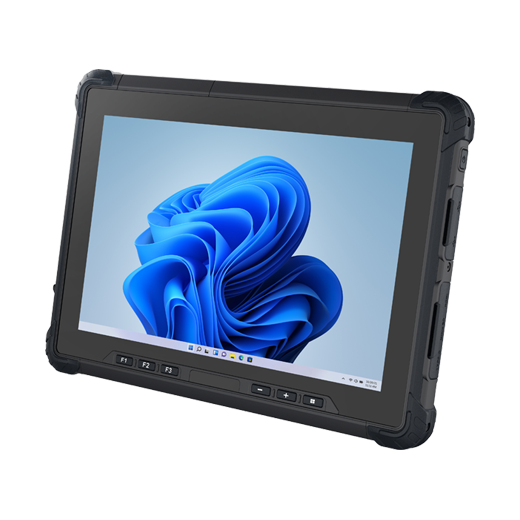

10.1″ IPS LCD Screen (1920 x 1200 Resolution)
Intel Alder Lake i5-1235U CPU
Windows 11 Pro or Windows 10/11 IoT OS
4ft Drop / Shock Protection (MIL-STD-810H)
IP66 Water & Dust Protection

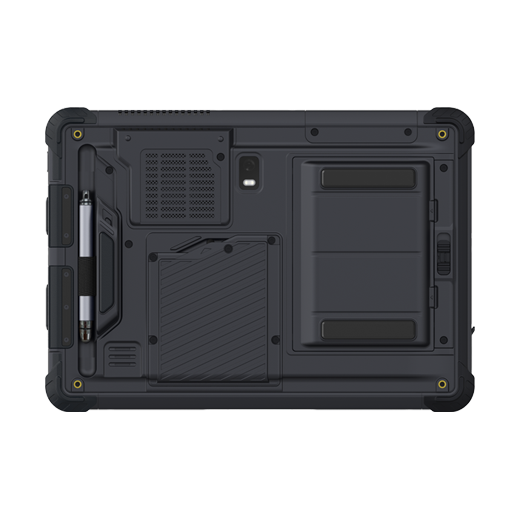

One Internal and One Hot Swappable Battery
Intel AX210 Wi-Fi 6E, Bluetooth 5.2, GPS, 4G LTE (Optional)
Expansion Slot Module Options: High Precision Module, RJ45 + USB 2.0, RS232 Module
4 ft (1.2 m), per MIL-STD-810H, Method 516.8, Procedure IV
Shock Rating
MIL-STD-810H, Method 516.8, Procedure I
SYSTEM
Processor
13th Gen Intel Core i5-1335U Processor, up to 4.60 GHz,12 MB Intel Smart Cache Optional: 12th Gen Intel® Core i5-1235U Processor, up to 4.40 GHz, 12 MB Intel® Smart Cache *Due to ongoing global processor supply constraints, alternative CPU options may be proposed and finalized in coordination with the customer based on real-time availability.
GPU
Intel® Iris® Xe Graphics eligible up to 1.20 GHz with i5-1235U/up to 1.25 GHz with i5-1335U
Memory
16 GB LPDDR5; 8 GB configuration available
Storage
256 GB M.2 2280 PCle NVMe SSD; optional up to 1 TB
Operating System
Windows®11 loT Enterprise LTSC 2024, 64-bit; Windows 11 Pro, 64-bit
Hardware Security
TPM 2.0
Physical Security
Kensington Security Slot
DISPLAY
Screen Size
10.1-inch IPS LCD
Resolution
1920 x 1200
Brightness
800 nits; sunlight-readable
View Angle
85°/85°/85°/85° (L/R/U/D)
Contrast Ratio
1200:1
Touchscreen
10-point capacitive multi-touch
Touch Modes
Finger, glove, wet-touch, and active stylus support
Cover Glass
Chemically strengthened glass
Screen Protector
User-replaceable anti-glare film
Power
Battery
Hot-Swappable Battery: 11.1 V, 6000 mAh (66.6 Wh) Internal Battery: 7.4 V 880 mAh (6.5 Wh)
Operating Time
Up to 10 hours, depending on configuration and usage
AC Adapter
Input: 100-240 V AC, 50/60 Hz Output: 19 V DC, 3.42 A
MECHANICAL
Dimensions

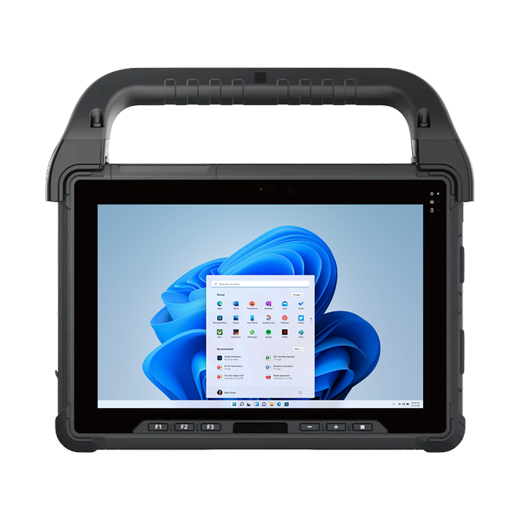

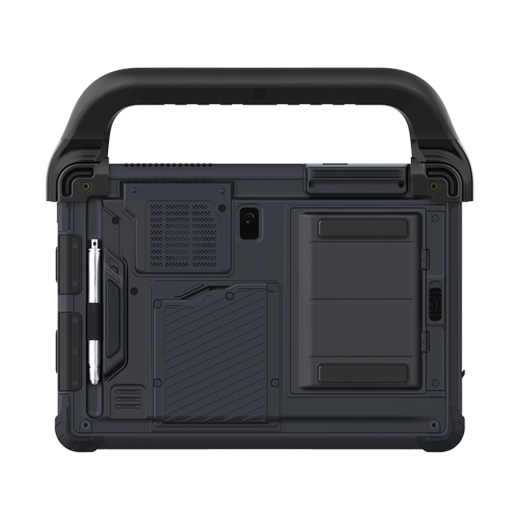

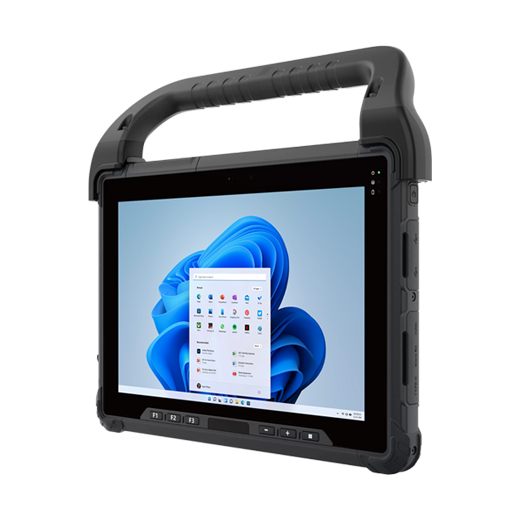

268.5 (W) x191.0 (H) x22.4 (D) mm 286.0 (W) ×255.0 (H) × 65.0 (D) mm (with Carry Handle)
Weight
1.2 kg (2.65 lb) 1.53 kg (3.37 lb) (with Carry Handle)
I/O INTERFACE
Sensors
Ambient light sensor; accelerometer
Audio
Built-in microphone; integrated speaker (95 dB)
Camera
Front: 5 MP Rear: 8 MP with autofocus and LED flash
USB
2x USB 3.1 Gen 1 (5 Gbps) Type-A ports, 1× USB 3.1 Gen 1 (5 Gbps) Type-C port
Video Output
1× HDMI 2.0
Card Slots
1× microSDXC card slot, 1× nano-SIM card slot
Power Input
1× USB Type-C power input (USB PD, 65W; 20 V DC, 3.25 A), 1× DC-in jack (19 V DC)
Docking Interface

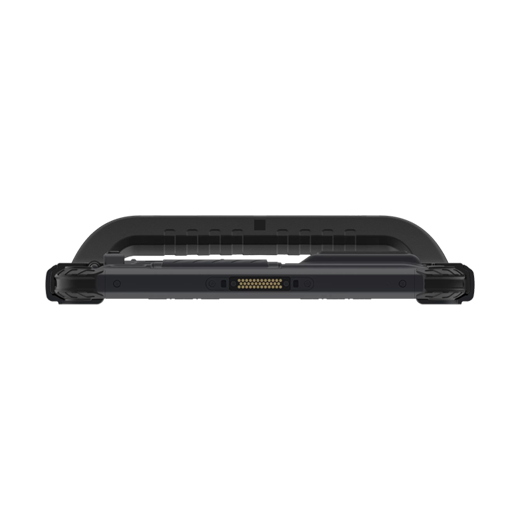

1× 35-pin docking connector
Buttons
1× power button, 6 x programmable function buttons
I/O EXPANSION MODULE
Base Module
1x Ethernet port (RJ45) and 1x USB 2.0 Type-A port
Available Module
1× RS-232 serial port
Custom Modules
Customer-specific I/O module configurations are available subject to engineering evaluation
COMMUNICATIONS
Wi-Fi
Wi-Fi 6E (IEEE 802.11a/b/g/n/ac/ax), 2.4 GHz, 5 GHz, and 6 GHz
Bluetooth
Bluetooth® 5.3
4G LTE (Optional)
Regional configurations available
GNSS
u-blox NEO-M9N; supports GPS, GLONASS, Galileo, and BeiDou
ENVIRONMENTAL
Operating Temperature
-20°C to 60°C (-4°F to 140°F)
Storage Temperature
-40°C to 70°C (-40°F to 158°F)
Humidity
0% to 95% RH, non-condensing
CERTIFICATIONS & COMPLIANCE
Regulatory Compliance
FCC, CE, UKCA, KC, RCM
Environment Compliance
RoHS, REACH
Additional Certification
Regional or industry-specific certifications
Support
can be supported upon request, subject to project requirements and technical feasibility.
